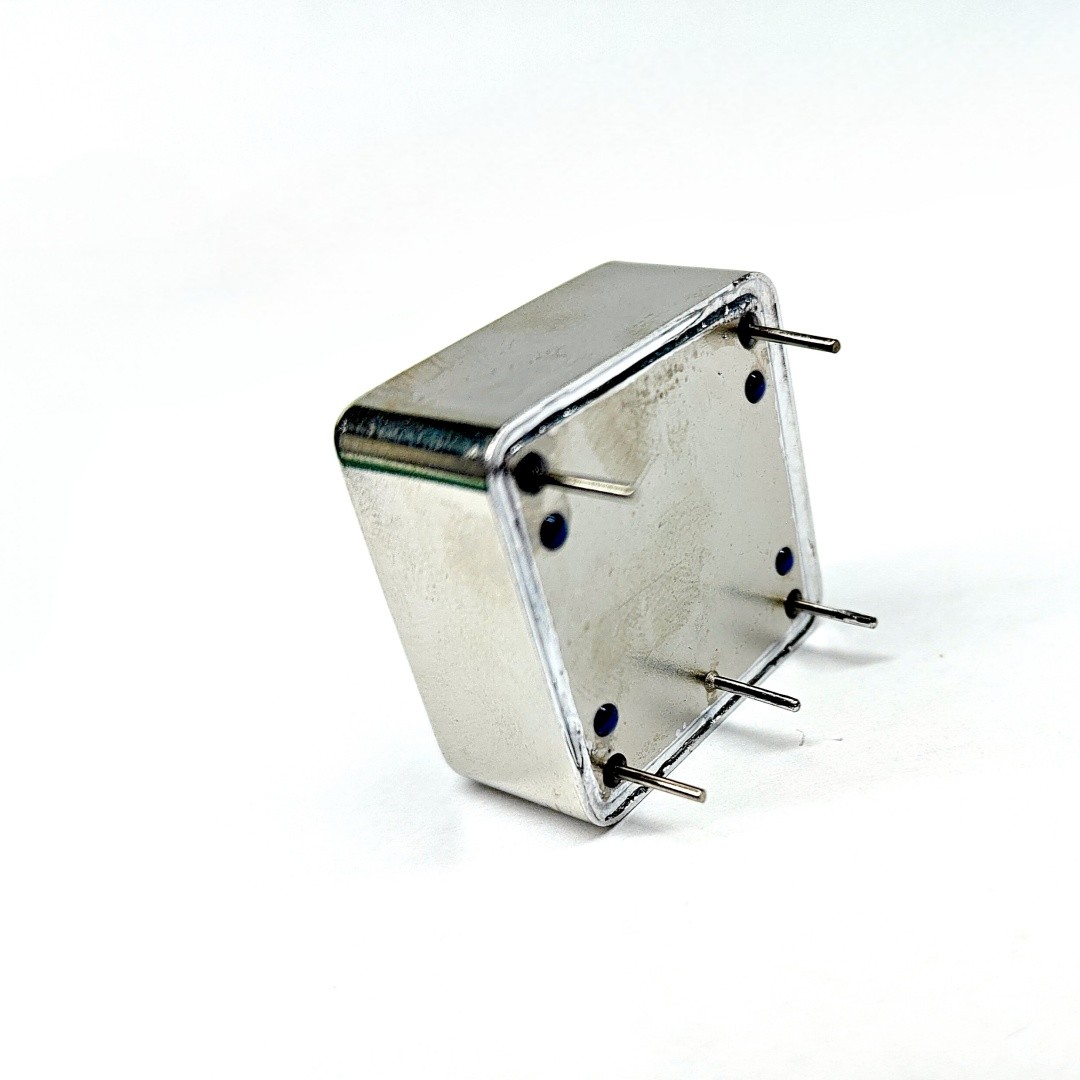

500MHz Oven Controlled Crystal Oscillator (OCXO) – Ultra-Low Phase Noise & High Stability

Premium 500MHz OCXO for Precision Frequency Control

Our 500MHz Oven Controlled Crystal Oscillator (OCXO) delivers ultra-low phase noise and exceptional frequency stability, making it the ideal choice for high-performance applications such as:

• Telecommunications

• Test & Measurement Equipment

• Radar & Satellite Systems

• GPS Timing & Synchronization

• Military & Aerospace Systems

Engineered with high-quality crystal components and advanced oven-controlled temperature compensation, this OCXO ensures stable 500MHz output even in extreme environments.

Key Features of Our 500MHz OCXO

✅ Ultra-Low Phase Noise – Optimized for critical RF applications
✅ High Frequency Stability – ±0.1ppm over -40°C to +70°C
✅ Low Aging Rate – ≤±3ppb/day (after 30 days)
✅ Wide Tuning Range – ±0.7ppm via 0-5V voltage control
✅ Robust Design – Compact 51×41×18mm footprint

Technical Specifications

Output Characteristics

Frequency Stability

Phase Noise Performance

Power & Environmental Specs

• Operating Voltage: 15VDC (±5%)

• Current Consumption: ≤250mA (steady state)

• Storage Temperature: -50°C to +90°C

• Dimensions: 51×41×18mm

Support customized development！！！

Why Choose Our 500MHz OCXO?

✔ Superior Temperature Compensation – Oven-controlled design minimizes frequency drift
✔ Low Power Consumption – Optimized for energy-sensitive applications
✔ Military-Grade Reliability – Stable performance in harsh conditions
✔ Customizable Options Available – Contact us for tailored solutions

Indicator

Dimension
