SMD7050 62.5MHz Crystal OSC

Frequency: 62.5MHz
Frequency stability: ±20ppm
Temperature Drift: ±30ppm
Operating voltage: 3.3V
Operating temperature range: -40~85℃

Discover the SMD7050 62.5MHz Crystal Oscillator - high-frequency precision, compact size, and reliable performance for your electronic applications.

Specifications

N0.Item  Electrical Spec.Notes
Holder TypeSMD7050
Nominal Frequency62.500000 MHz
Frequency stability±20ppmat 25℃±2℃
Temperature Drift±30ppmat -40~85℃
Operating voltage3.3V±10%max
OutputCMOS
Output load condition15pF
Current consumption30 mA max.
Operating temperature range-40~85℃
10 Storage Temperature Range-55~125℃
11 Duty Cycle45%-55%
12 Rise /Fall Time3 nS max.
13 High output voltage0.9Vdd min.
14 Low output voltage0.1Vdd max.
15 Start-up Time5mS max.To 90%of Final Amplitude
16 Enable Voltage High (Logic 1)70%Vdd minOutput wil be enable if OE is Logic 1 or open;
Output will be disable if OE is Logic 0.
17 Enable Voltage Low (Logic 0)30%Vdd max.
18 Enable Delay Time150 uS max.
19 Phase Jitter1 pS rms max12KHz-20MHz
20 Aging±3ppm1st.Year at 25℃

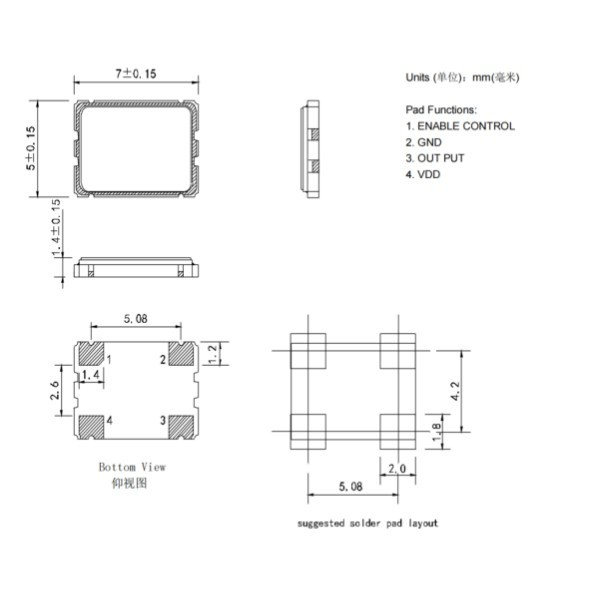

Dimension


Test Circuit

test ccircit123.png

Waveform
