Frequency Range: 1MHz to 150MHz
Frequency Stability: 20ppm to 50ppm
Supply Voltage: 5V to 3.3V 10%
Operate Temperature Range: -20~70C/-40~85C
CMOS compatle logic levels

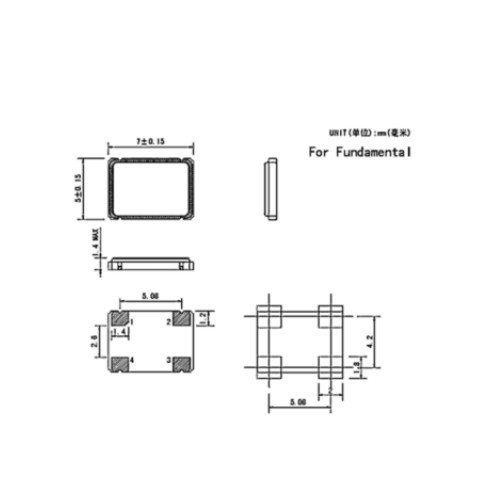

Pin-compatible with standard 5.0*7.0mm packages
High precision crystal oscillator,and covering up to high-frequency crystal oscillator
Low jitter and fundamental or overtone design
Low power
Output tri-state function
Embossed taping datasheet
Reflow soldering
RoHS/Reach green parts
Ideally designed for a wearable device, IoT, NB.networking, GPS/Navigation, Bluetooth, Ethernet, ADS, LVDSL, Fiber channel hand-held.
| Frequency range | 1Mhz to 150MhZ |
| Frequency stability | 20ppm to 50ppm |
| Operate temperature range | -20~70C/ -40~85C |
| Storage temperature range | -40~85C/-55~125C |
| Supply voltage | 5V or 3.3V 10% |
| Symmetry (duty cycle) | 40/60 standard |
| Output Load | 15pF CMOS |
| 5.0V | 1Mhz- 35.999Mhz @ 25mA max |
| 36Mhz- 69.999Mhz @ 60mA max | |
| 70.000Mhz ~150Mhz @ 80mA max | |
| Current consumption(15pF only) | 1Mhz~35.999Mhz @20mA max |
| 1.8V 2.5V 3.3V | 36Mhz ~69.999Mhz @ 40mA max |
| 70.000Mhz ~150Mhz @60mA max | |
| Rise/Fall time | 5 nS max |
