  • 3G SAW Filter – 3GHz Frequency Range, 2.8dB Insertion Loss, -40°C to +85°C Temperature Stability
3G SAW Filter – 3GHz Frequency Range, 2.8dB Insertion Loss, -40°C to +85°C Temperature Stability

3G SAW Filter – 3GHz Frequency Range, 2.8dB Insertion Loss, -40°C to +85°C Temperature Stability

3G SAW FILTER
Frequency Range: 3GHz
Insertion Loss: 2.8 dB
Temperature Stability: -40°C to +85°C

Enhance your mobile applications with our 3G SAW Filter, featuring a 3GHz frequency range and 2.8dB insertion loss. Designed for high reliability, it operates effectively across temperatures from -40°C to +85°C, making it ideal for various communication systems.

Electrical Specifications

ProjectLevelUnit
Max work voltage10 Vdc
Max input power15 dBm
Operating temperature range-45～+85C
Storage temperature range-55～+125C



ProjectUnitMiniTypeMax
Center FrequencyMHz
3000
Insert loss(3000+/-6.19 MHz)dB
2.8 3.3
In-band fluctuation(3000+/-6.19
MHz)		dB
0.6 1.0
Standing wave ratio(3000+/-6.19
MHz)

1.9 2.1
 Stop band
suppression
DC~2850    MHz
3150~5000 MHz		dB25
25


28
28

Input and output impedanceO
50



Frequency Response

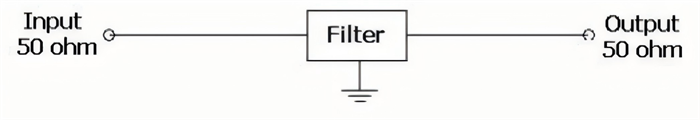

Test Circuit

saw filter(3).png


GNSS SAW Filter 1575.42MHz with 1.3dB Insertion Loss
