  • 1842.5MHz Saw Filters
1842.5MHz Saw Filters

1842.5MHz Saw Filters

Center Frequency: 1842.5MHz
Insertion loss: 2.0dB
DC Voltage VDC: 5V
Operating Temperature Range: -30~85℃

Application


●Band3 Rx filter for WCDMA/LTE/5GNR applicable.

● Impedance 50 ohm input and output.

● Unbalanced to unbalanced operation.

● Useable passband 75MHz.

● RoHS compatible.


Dimensions






Recommended Land Pattern




Maximum Rating




Test Circuit





ELECTRICAL SPECIFICATION

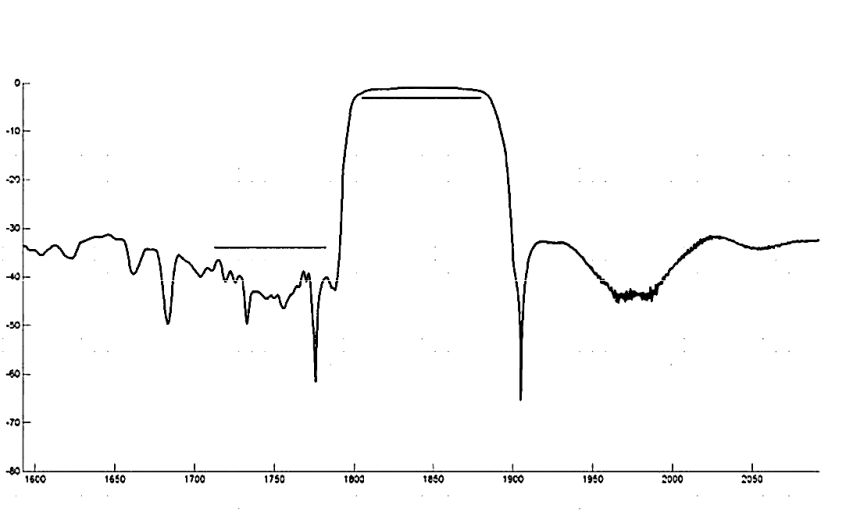

Typical Frequency Response
