25MHz TCXO SMD2520

Frequency: 25MHz
Supply Voltage(Vcc): 1.8V/2.8V/3.0V
Frequency Stability Vs Temperature: ±0.05ppm/℃ max.(-30 ~ +85℃)
Initial Frequency Tolerance: ±2.0ppm max.

Description

Model	TCXO SMD252025Mhz 3.3V
Size	SMD2520
Frequency	25 MHz
Type	TCX0
Vcc	+1.7V～+3.3V
Vcount	N/A
AFC Range.	N/A
Temp	±0.5ppm max.@-30～+85℃
Slope	±0.05ppm/℃ max.@-20～+65℃
Initial Frequency	±2.0ppm max. (After 2times reflow)

Electrical Characteristics

Parameter		Value	Conditions
Frequency		25.000000MHz
Supply VoltagelVcc		+1.8±5%,+2.8V±5%,+3.0±5%
Output Load		10kohm//10pF±10%
Control Voltage[Vcont		NA
Output Level		0.8Vp-pmin	Cliped sine wave (DC-coupled)
Current		.5mAmax.	0koms//10pF±10%
Duty Cycle		50±5%
Operating Temperature Range		40~+85℃
Storage Temperature Range		40~+85℃
Initial Frequency Tolerance		±2.0ppm max	After 2times reflow
FrequencyStability	Vs.Temperature(-30~+85℃)	±0.5ppm max	Referenced to+25℃ frequenc
	vs.Temperature (-40～-30℃)	±3.0ppm max.	Referenced to+25℃ frequenc
	vs.Supply Voltage	±0.2ppm max.	Vcc±5%
	Vs.Load	±0.2ppm max.	10koms//10pF±10%each
	Vs.Aging	±1.0ppm max.	1st Year
Frequency Slope	Vs.Temperature(.20~+65℃)	±0.05ppm/C max	Every+2℃
	vs.Temperature (-30~+85℃)	±0.1ppm/℃ max
	vs.Temperature(-40～-30℃)	±0.35pom/℃ max
Start.up Time		2ms max	Morethan 90%offinal amplitude

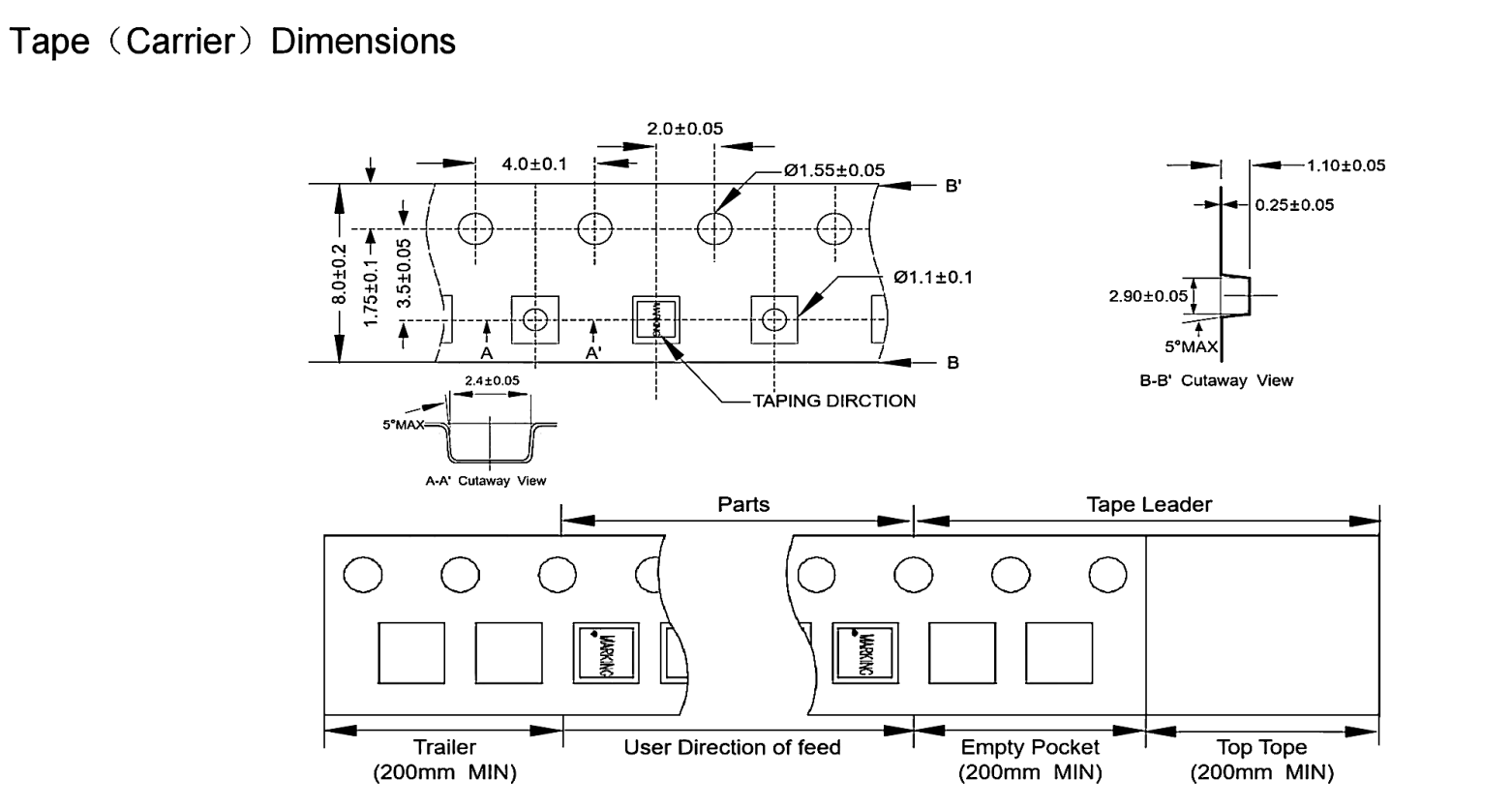

Phase Noise		-130dBcHz max	1KHz offset
