SMD2520 VCTCXO

Temperature Stability: ± 0.5 ppm ～ ± 2.0 ppm.
Operating Temperature Range: - 30 ℃ ~ 85 ℃.
Supply Voltage: 1.8V Typ./2.8V Typ./3.0V Typ.
Voltage Control Function Available.

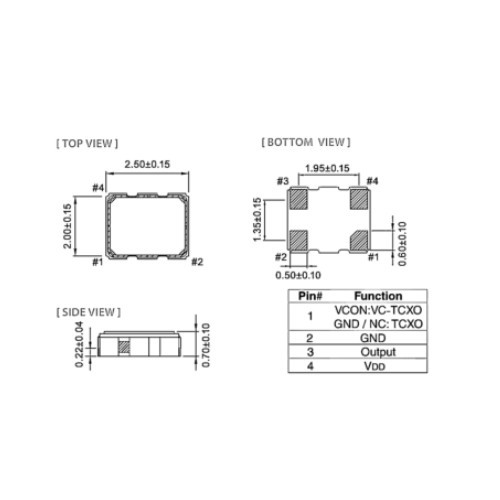

2.5x2.0 SMD VCTCXO Oscillator 38.4mhz/26mhz/50mhz Optional

The SMD2520 VCTCXO offers outstanding frequency stability and precision for your timing applications. Designed for superior temperature compensation, this voltage-controlled oscillator delivers reliable performance in a compact 2520 package. With its excellent stability over temperature variations, the SMD2520 is perfect for use in telecommunications, data communications, and industrial electronics. Optimize your designs with this high-performance VCTCXO for enhanced accuracy and reliability.

VCTCXO Features

Temperature Stability: ± 0.5 ppm ～ ± 2.0 ppm.

Operating Temperature Range: - 30 ℃ ~ 85 ℃.

Supply Voltage: 1.8V Typ./2.8V Typ./3.0V Typ.

Voltage Control Function Available.

Applications

GPS, WiMAX, Cellular and Wireless Communications

VCTCXO Specifications

Holder Type	VC-TCXO/TCXO
Frequency Range	13.000 Mhz-52.000 Mhz
Typcial Frequency	16.367667 Mhz/16.368 Mhz/16.369 Mhz 19.2 Mhz/26Mhz/38.4Mh
Supply Voltage	1.8±0.1V,2.8V±5%,3.0±5%(voltage range :1.7V～3.3V)
Frequency Tolerence	±2.0ppm Max(at 25℃ afer 2 reflows)
Frequency Vs.Temperature	±0.5ppm /±2.0ppm
Frequency Vs.Load	±0.2ppm Max
Frequency Vs.Supply Voltage	±0.2ppm Max
Current Consumption	2.0mA Max.
Auto Frequency Control Range	±8ppm~±15ppm
Operating Temperature Range	-30℃~+85℃
Storage Temperature Range	-40℃~+85℃
Output Load	10KQ//10 pF
Phase Noise	-130dBc/Hz at 1KHz offset
Aging	±1 ppm Max
