Frequency Range: 12MHz ~ 96MHz
Standard Frequency: 16MHz, 24MHz, 26MHz
Level of Drive: 10uW
Dimension: 2.5 * 2.0mm
Achieve high-precision timing with the SMD2520 surface-mount quartz crystal component. Designed for compact and demanding electronic applications, this quartz crystal offers exceptional stability and accuracy, ensuring reliable performance in frequency-sensitive circuits.
AT-cut Crystal Construction

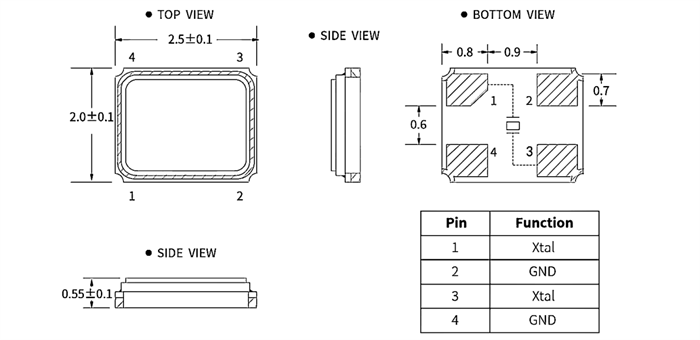

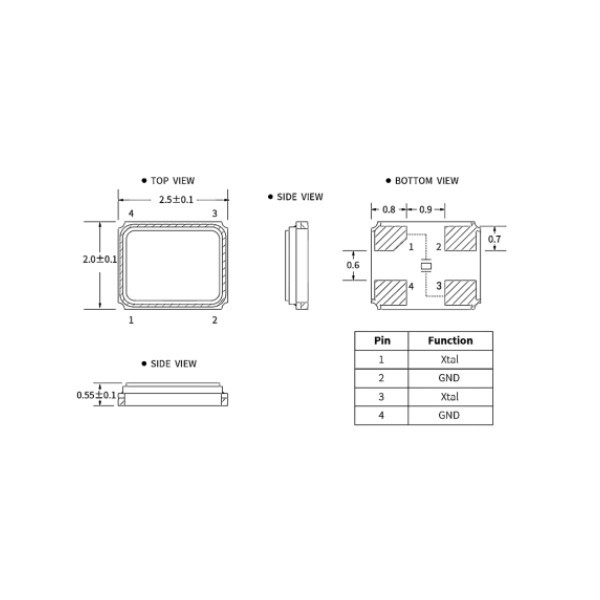

Ultra miniature Ceramic surface mount with Metal LidHigh temperature, high precision and reliability CharacteristicsPackage Size:2.5x2.0x0.55mm
Pb-free and RoHS/Green compliant
Industrial applicationsPortable devices
Short-range Wireless module
Computers,Modems, Microprocessors
| ltem | Symb. | Min. | Typ. | Max. | Unit | Notes |
| Frequency Range | Freq. | 12.000 | 54.000 | MHz | ||
| Oscillation Mode | Fundamental (AT-cut) | |||||
| FrequencyTolerance | △f/f | ±10 | ppm | at 25℃±2℃ | ||
| Operating Temperature | T_use | -20 | 70 | ℃ | ||
| -40 | 85 | ℃ | ||||
| StorageTemperature Range | T_sta | -55 | 125 | ℃ | ||
| Shunt Capacitance | CO | 3 | pF | |||
| Drive Level | DL | 10 | 100 | μW | ||
| Load Capacitance | CL | 6 | 20 | pF | ||
| Insulation Resistance | IR | 500 | MO | at DC100V | ||
| Aging | f_age | 3 | ppm | 1st.Year at 25℃ | ||
FT Temp. | 士10ppm | ±15ppm | 士20ppm | 士30ppm |
-20℃ to+70℃ | △ | ★ | ★ | ★ |
| -40℃ to+85℃ | △ | ★ | ★ | |
| ★: Available △:Conditional | ||||
| Frequency Range | ESR(Max.) |
| 12MHz≤Freq.<16MHz | 200Ω |
| 16MHz≤Freq.<20MHz | 80Ω |
| 20MHz≤Freq.<30MHz | 60Ω |
| 30MHz≤Freq.<35MHz | 50Ω |
| 35MHz≤Freq.≤54MHz | 40Ω |
