Low Noise Amplifer

Gain: 20dB
Voltage: 5V
Dimension: 6.0mm*6.0mm
Frequency: 30~700MHz

The TLLNA0700003 mmic LNA amplifier leverages advanced high-frequency microelectronics assembly technology and a high-reliability design. It delivers a gain of 20dB with a single +5V power supply and features an output 1dB compression point of +18dBm. Operating within the frequency range of 30-700MHz, this low noise amplifier boasts a low noise figure of just 0.8dB and an excellent return loss. Housed in a compact 6.0mm x 6.0mm surface mount package, it is ideal for reflow soldering processes, making it perfect for high-performance RF applications.


Low Noise Amplifier Main Data


50 Ohm impedance

30~700MHz

0.8dB ultra-low noise figure

20.0dB gain

1dB gain flatness

Output 1dB compression point +18dBm

Output third-order intercept point +35dBm

1.50:1 input and output VSWR

+5V single power supply

Working temperature -40°C~+85°C


Low Noise Amplifier Application


Broadcast

Security system

Measure

Radio station

Fixed antenna


Low Noise Amplifier Electrical Characteristics

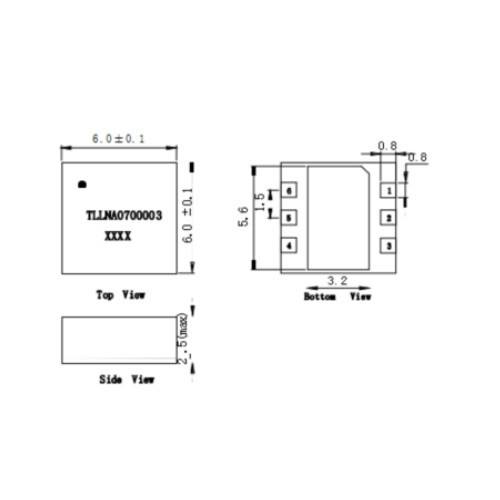

Dimension
