Standard frequency: 100.00MHz
Output: Sine Wave
Temperatur frequency characteristics: ≤±20ppm
Operating voltage: +5VDC
Aging: ≤±1ppm/Aging

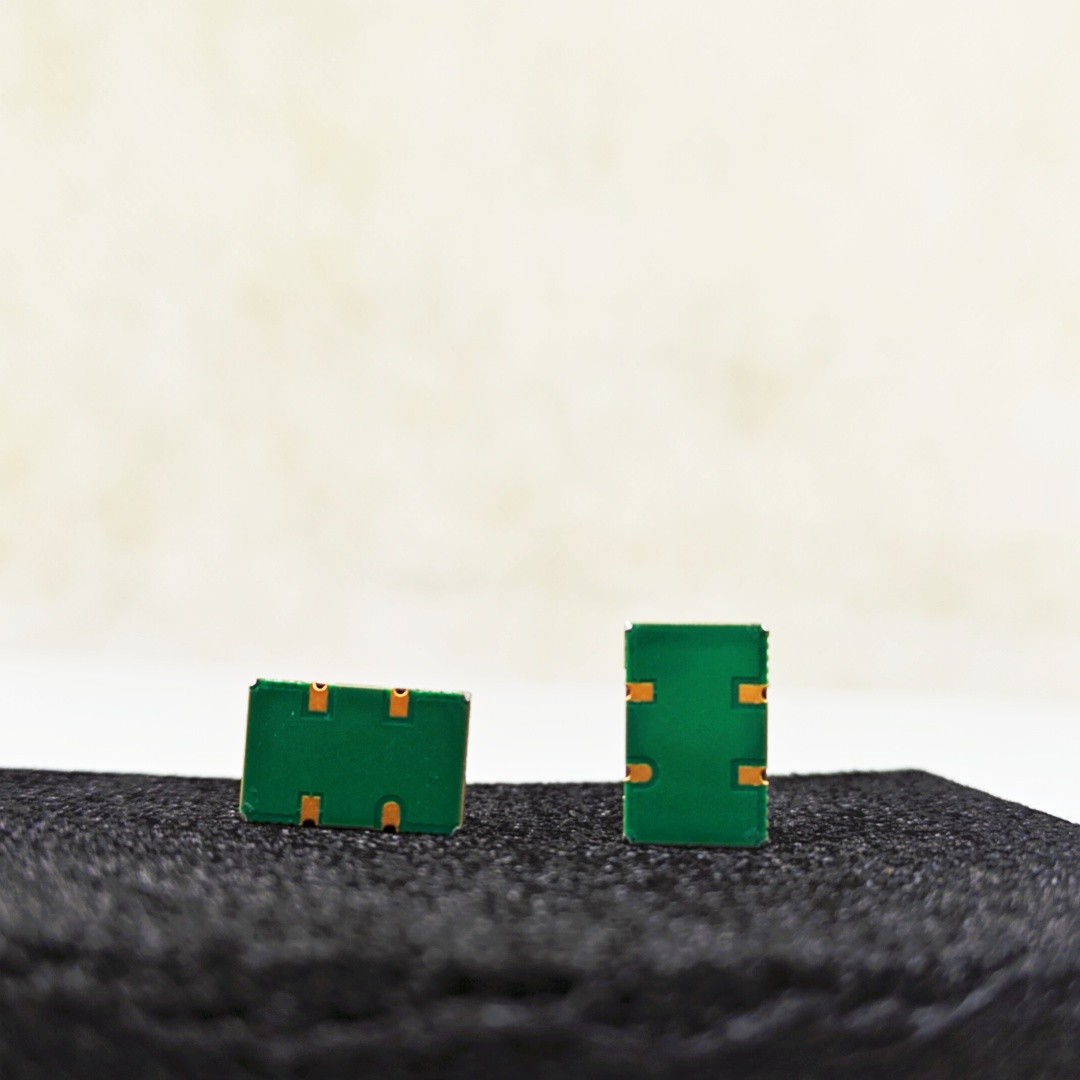

This VCXO offers a stable 100.00MHz output with sine wave waveform, designed for applications requiring high-frequency precision. Featuring a temperature frequency characteristic of ≤±20ppm and a low aging rate of ≤±1ppm per year, it operates at +5VDC, ensuring reliable performance in demanding environments. Perfect for systems where frequency stability is critical.
| Product features | Specification | Technical Specifications | Remark |
| Output Characteristics | Standard frequency | 100.00MHz | |
| Output | Sine Wave | Load 50Q±5% | |
| Second harmonic suppression | -25 dBc (typ). | ||
| Start time | <5ms | 2ms(typ) | |
| Signal Power | >5dBm | ||
| Frequency stability | Temperatur frequency characteristics | ≤±20ppm | -40～+85℃, fref =(f max +fmin )/2 |
| Aging | ≤±1ppm/Aging | @25℃ | |
| Power supply characteristics | Current | ≤35mA | @+25℃ |
| Operating voltage | +5VDC | Vcc±5% | |
| Voltage controlled voltage (frequency fine tuning) | Tuning Voltag Range | 0～5V | Center voltage +2.5V |
| Pull range | >±25ppm | ||
| FM slop | Positive polarity | ||
| Linearity | <10% | ||
| Phase noise | Type | Unit | |
| 10Hz | -80 | dBc/Hz | |
| 100Hz | -115 | ||
| 1kHz | -142 | ||
| 10kHz | -163 | ||
| 100kHz | -165 | ||
| Work Environment | Working Temperature | -40℃~85℃ | |
| Storage Temperature | -55℃~105℃ | ||
| vibration | Test conditions:Amplitude:0.75mm (5～26HZ);Acceleration:10g; 10Hz～500Hz;30min per cycle,2 hours per direction (3 directions,X, Y and Z), IEC 68-2-06 Test Fc | ||
| Shock | 50g; 11ms; half sine wave (3 directions, X, Y and Z), IEC 68-2-27 TestEa/Severity 50A | ||
| Size | 15*9*6.5mm | ||
| Weight | 2.2g | ||
| Pin Number | Function |
| 1 | EFC |
| 2 | GND |
| 3 | OUT |
| 4 | VCC |
