Glass SMD5032 Crystal Unit

Frequency Range: 8MHz ~ 50MHz
Load Capacitance: 8pF ~ 20pF
Operating Temperature Range: -40~ 85℃
Frequency Tolerance: ±10ppm@25℃
Aging: ±3ppm

SMD5032 quartz crystal with a frequency range of 8MHz to 50MHz, load capacitance of 8pF to 20pF, and operating temperature from -40°C to 85°C. Features ±10ppm frequency tolerance @25°C and ±3ppm aging for reliable performance.

Feature

AT-cut Crystal Construction

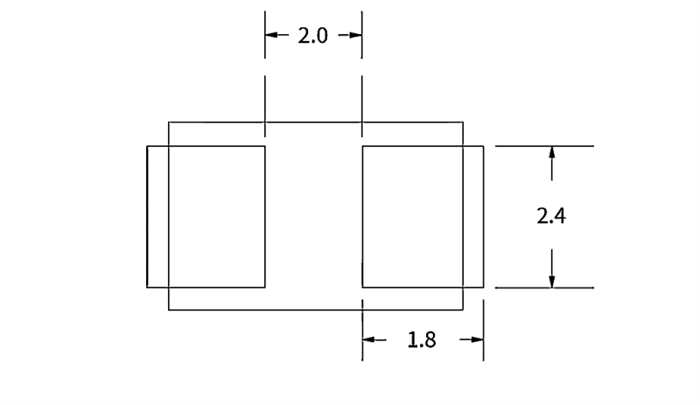

Ceramic surface mount with glass sealedPackage Size:5.0 x3.2 x 1.4mm(2PAD)

Excellent heat resistance, high precision, and high reliability

Pb-free and RoHS/Green compliant

Applications

Industrialapplications

Portable devices

Short-range Wireless module

Computers, Modems, Microprocessors

Electrical Specifications

ltem	Symb.	Min.	Typ.	Max.	Unit	Notes
Frequency Range	Freq.	8.000		50.000	MHz
Oscillation Mode		Fundamental (AT-cut)
Frequency Tolerance	△f/f			±10	ppm	at 25℃±2℃
Operating Temperature	T_use	-20		70	℃
Operating Temperature	T_use	-40		85	℃
StorageTemperature Range	T_sta	-55		125	℃
Shunt Capacitance	C0			5	pF
Drive Level	DL		10	300	μW
Load Capacitance	CL	8		20	pF
Insulation Resistance	IR			500	MΩ	at DC 100V
Aging	f_age			3	ppm	1st.Year at 25℃

Freqeuncy Stability & Operating Temperature Range

	±10ppm	±15ppm	±20ppm	±30ppm
-20℃to +70℃	△	★	★	★
-40℃to +85℃		△	★	★

★Available △Conditional

Equivalent Series Resistance

Frequency Range	ESR(Max.)
8MHz≤Freq.<10MHz	100Ω
10MHz≤Freq.<12MHz	80Ω
12MHz≤Freq.<16MHz	60Ω
16MHz≤Freq.<20MHz	50Ω
20MHz≤Freq.<24MHz	40Ω
24MHz≤Freq.≤50MHz	30Ω
