Quartz crystal oscillators 7.0*5.0mm

Feature

CMOS compatle logic levels

Pin-compatible with standard 5.0*7.0mm packages

High precision crystal oscillator,and covering up to high-frequency crystal oscillator

Low jitter and fundamental or overtone design

Low power

Output tri-state function

Embossed taping datasheet

Reflow soldering

RoHS/Reach green parts

Applications

Ideally designed for a wearable device, IoT, NB.networking, GPS/Navigation, Bluetooth, Ethernet, ADS, LVDSL, Fiber channel hand-held.

Electrical Specifications

Quartz crystal oscillators 7050 's Circuit

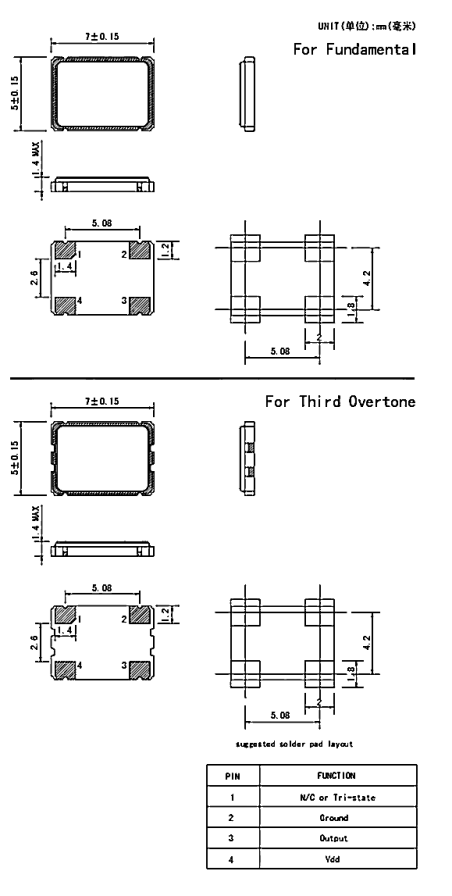

Dimensions
