Saw Resonator 433.92MHz SMD3225 Pacakge

Features

1-port Resonator

Ceramic Package for Surface Mounted Technology (SMT)

RoHS compatible

Package size 3.20x2.50x0.70mm

Electrostatic Sensitive Device(ESD)

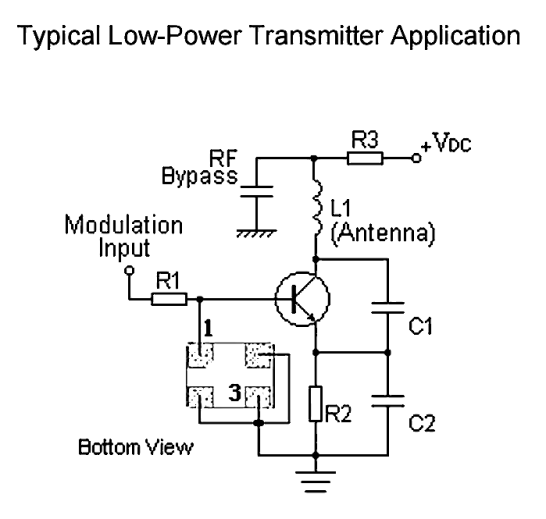

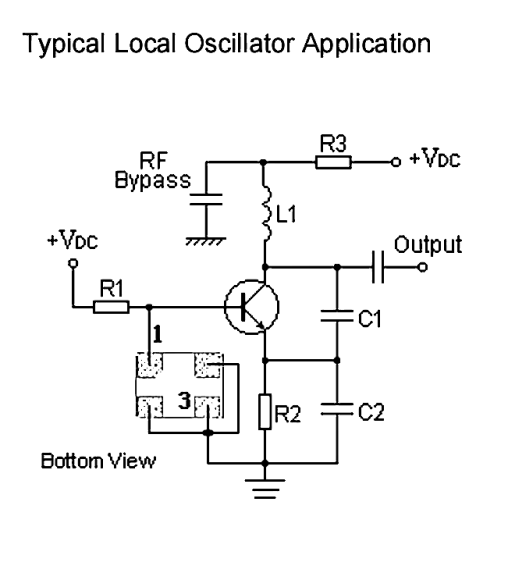

Saw Resonator 433.92MHz Application

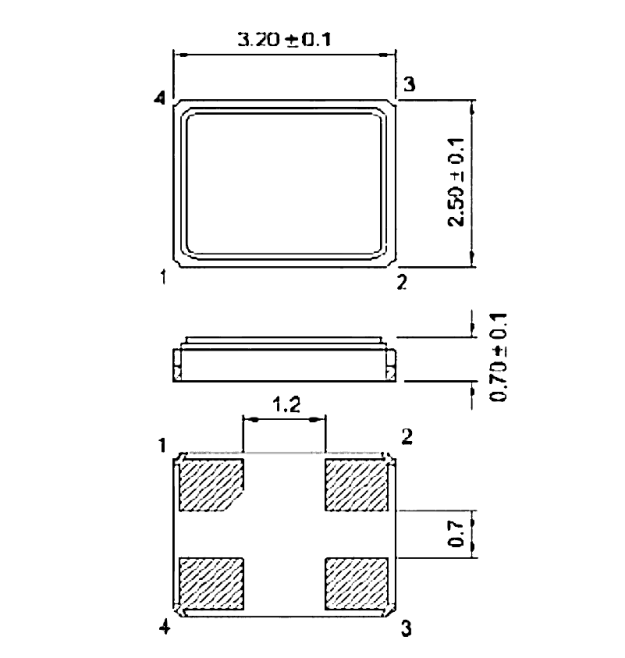

Dimensions

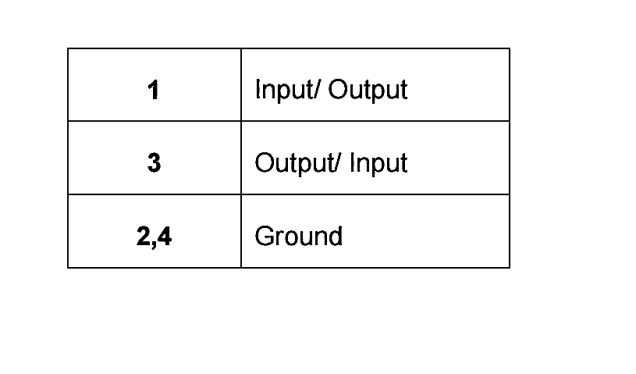

Pin Configuration

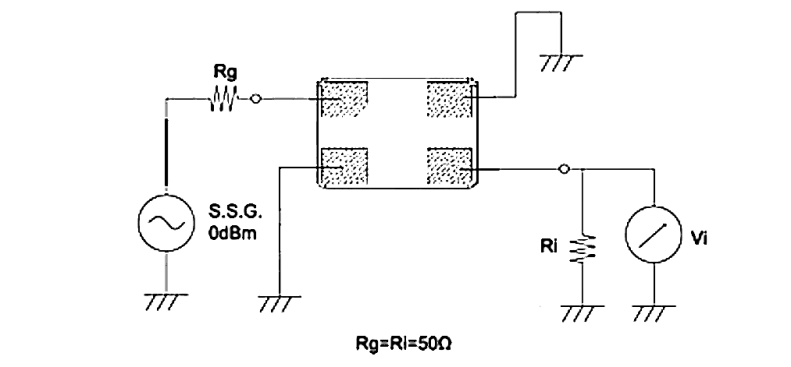

Saw Resonator Circuit

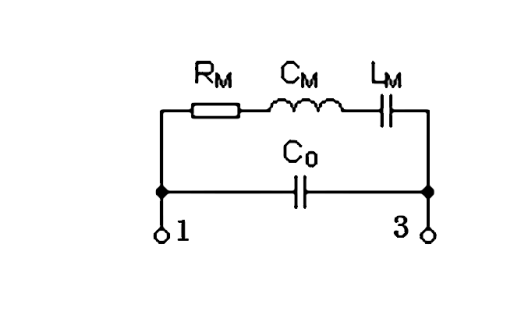

Equivalent LC Model

Saw Resonator 433.92MHz Maximum Rating
