32.768 khz crystal oscillator datasheet

Features

32.768kHz output SPXO-IC for AT-cut crystal

Excellent frequency stability over wide temperature range realized by third-order temperature characteristics specific to AT-cut crystal.

Reflow soldering

Pb-free and RoHS/Green compliant.

Application

 Ideally designed for use in Ethernet, network adapter cards,devices, blue tooth, PCMCIA Cards, Palmtop Computer, RFID, Portable Applications.

Specifications

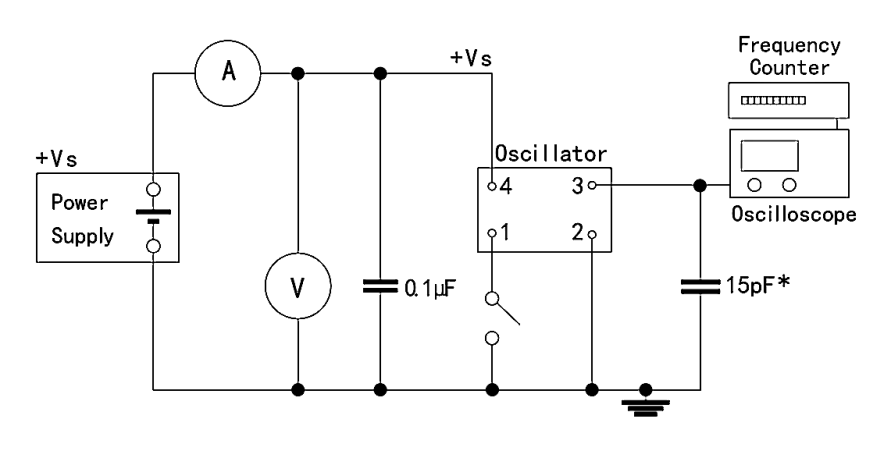

Test Circuit

Dimensions

PIN Function

※Notes: Tri-state: PIN 1 connected to Vdd or floating, the product is working properly;connected to GND,stops working.
