  • SMD 10MHz OCXO 25.4 x 22 mm
SMD 10MHz OCXO 25.4 x 22 mm

SMD 10MHz OCXO 25.4 x 22 mm

Frequency: 10MHz
Supply Voltage: 12 V
Output level: Sine wave
Package Size: 25.4 x 22 x 13.20 mm

Features

Low Phase Noise

Small SMD Package

Tight Frequency Stability

Low Power Consumption

Fast Warm-up Time

Electrical Frequency Tuning Input

Reference Voltage Output

RoHS-Compliant (lead-free)


Applications

Instrument Reference

Microwave Communication

Clock Reference for Microwave Signal Source

Test & Measurement

 Telecom Systems

Radar Systems


Electrical Specifications


Test conditions: VDC = +12 V; VCO = +5 V; at +25 ± 3°C unless otherwise identified

1. Output (PIN = “R.F. OUTPUT”)



2. Frequency Stability



3. Electrical Frequency Adjustment (PIN = “VCO INPUT”)



4. Input Power (PIN = “+VDC”)



5. Reference Voltage (PIN = "REFERENCE VOLTAGE")


6. Environental

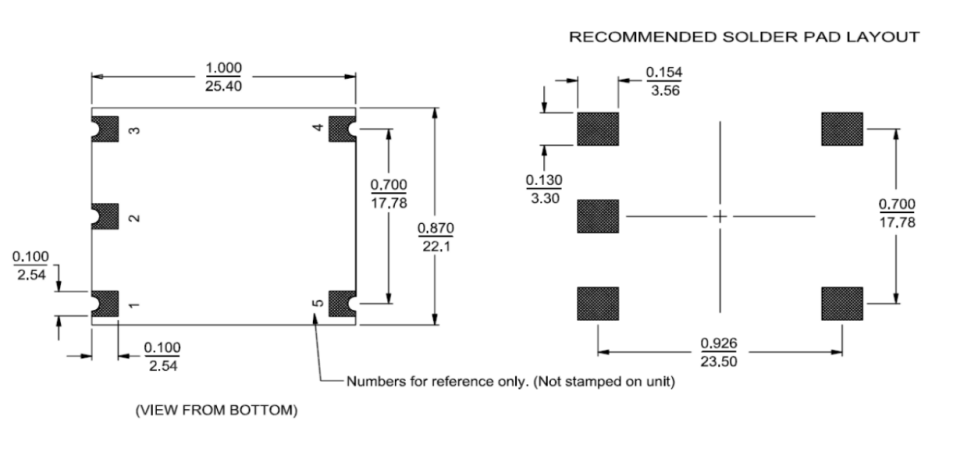

Dimensions
