  • SMD 3.45*3.1 10.7MHz Ceramic Filter
SMD 3.45*3.1 10.7MHz Ceramic Filter

SMD 3.45*3.1 10.7MHz Ceramic Filter

Center Frequency(fo)(MHz): 10.700±0.030
3dB Bandwidth(kHz): 180±40
20dB Bandwidth(kHz) max: 470
Insertion Loss (dB) (at minimum loss point): 4.5±2.0

The 10.7 MHz ceramic filter offers a center frequency of 10.700±0.030 MHz, with a 3dB bandwidth of 180±40 kHz and a 20dB bandwidth of up to 470 kHz. Ideal for RF applications, this filter provides excellent frequency stability and selectivity for high-performance communication systems.

OUTLINE DIMENSIONS AND MARK

Appearance: No visible damage and dirt.

Construction: SMD ceramic packaging.

The products conform to the RoHS directive and national environment protection law.

Dimensions and mark

10.7 mhz ceramic filter.png

ELECTRICAL SPECIFICATIONS

RATING

Items

Content

Withstanding Voltage (V) max.

50 (DC1min)

Insulation Resistance Ri,MΩ)min.

100 10V1min

Operating Temperature Range ()

-20+80

Storage Temperature Range ()

-40+85

ELECTRICAL SPECIFICATIONS

Items

Content

Center Frequency(fo)(MHz)

10.700±0.030

3dB Bandwidth(kHz)

180±40

20dB Bandwidth(kHz) max

470

Insertion Loss (dB) (at minimum loss point)

4.5±2.0

Ripple (dB) max (within 3dB Bandwidth)

1.0

Spurious Response (dB) min(9MHz-12MHz)

30

Input/Output Impedance(Ω)

330

Temp. Characteristic

±0.5% (–20 to 80 )

TEST

Test Conditions

Parts shall be tested under the condition ( Temp.:20±15℃,Humidity :65±20% R.H.) unless the standard condition(Temp.:25±2℃,Humidity :65±5% R.H.) is regulated to measure.

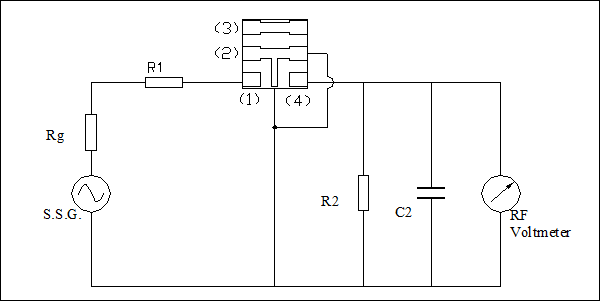

Test Circuit

TEST CIRCUIT.png


Ceramic filter
